Spring-Check Valves Plain x Plain

Description

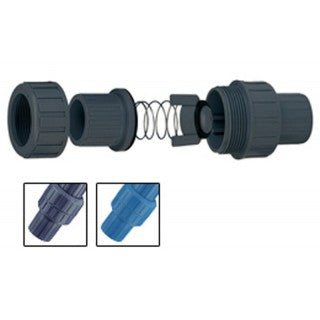

Spring-check valves are one-way non-return valves that can be installed in any orientation. These PVC valves with stainless steel spring have excellent corrosion-resistant characteristics and can be dismantled for maintenance and inspection purposes.

Pressure Rating

Spring-check valves have a pressure rating of 10 bar (150 psi) at 20^oC.

As temperature increases the pressure rating is reduced.  PVC systems should not be used where temperatures exceed 60^oC.

Sizing - Solvent Weld Pipe & Fittings

Imperial (inch) PVC pipe and fittings sizing is not straightforward. They are sized by their nominal bore or approximate inside diameter.

The following table details pipe outside diameters (o.d.) for each imperial size.  The inside diameter (i.d.) of the socket end of the corresponding fitting will be the same as the outside diameter of the pipe.

Pipe Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4" Outside Dia mm 21.4 26.7 33.6 42.2 48.3 60.3 75.2 88.9 114.3



Sizing - BSP Threads

The following table details approximate thread diameters for male BSP threads.

Nom Pipe Size	1/2"	3/4"	1"	1 1/4"	1 1/2"	2"	2 1/2"	3"	4"
Thread Dia mm	21.0	26.4	33.2	41.9	47.8	59.6	75.2	87.9	113.0
