Description

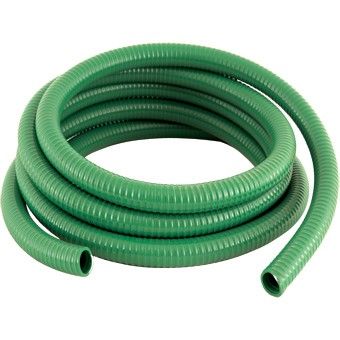

Medium Duty PVC Suction Hose
- -15C to +60C Working Temp
- Smooth Inner Wall With Light Corrugation To Outer Wall
- Manufactured From PVC With Rigid PVC Reinforcing Helix
Values given are based on the short term burst pressure of the hose at 20°C based on a 3:1 safety factor.
|
Size i.d. |
i.d. (mm) | o.d. (mm) | Pressure | Bend Radius |
| 1" | 25mm | 33mm | 7 bar | 125mm |
| 1 1/4" | 32mm | 40mm | 7 bar | 160mm |
| 1 1/2" | 38mm | 46mm | 6 bar | 190mm |
| 2" | 51mm | 60mm | 5 bar | 250mm |
| 2 1/2" | 63mm | 73mm | 4.5 bar | 315mm |
| 3" | 76mm | 87mm | 5 bar | 300mm |
| 4" | 102mm | 114mm | 4 bar | 400mm |
| 6" | 152mm | 165mm | 3 bar | 800mm |
